Induced Draft Exhaust
ID fans remove hot flue gas and help maintain negative pressure inside the furnace and exhaust system.
Industrial Boiler Draft Fan System
Boiler ID Fans & FD Fans
Heavy-duty ID and FD fan solutions for boiler combustion air supply, flue gas exhaust and stable furnace pressure control.
- Combustion air and flue gas control
- High-temperature heavy-duty design
- Custom selection for boiler projects
Scroll down for specifications, applications and project details.
BOILER DRAFT - HIGH TEMPERATURE - STABLE OPERATION
Special Advantages of Boiler ID Fans & FD Fans
Designed for reliable induced draft and forced draft operation in industrial boilers, thermal systems and continuous high-load production lines.
Stable Boiler Draft Control
Matched ID and FD fan selection helps supply combustion air, extract flue gas and maintain the required furnace pressure for safer boiler operation.
Forced Draft Air Supply
FD fans deliver stable fresh air for efficient combustion and balanced boiler performance.
High-Temperature Duty
Heavy-duty centrifugal fan structure supports boiler, power plant, cement and thermal process applications.
Custom Project Selection
Fan capacity, pressure, motor power, drive type and casing layout can be selected according to project conditions.
ID/FD Fan Boiler
- Home
- ID/FD Fan Boiler
Boiler ID Fans & FD Fans
ID (Induced Draft) and FD (Forced Draft) fans are essential components in industrial boiler and thermal system operations. As a key type of large-scale industrial fans, they are engineered to perform reliably under high-temperature, high-pressure, and heavy-duty working conditions.
FD fans supply a steady flow of fresh air into the boiler combustion chamber to ensure optimal fuel burning, while ID fans efficiently extract hot flue gases, maintaining the required negative pressure inside the furnace for safe and efficient boiler operation.
We offer a wide range of heavy-duty centrifugal fans specifically designed for boiler applications in power plants, chemical industries, metallurgy, cement production, pharmaceuticals, and cogeneration systems. Our fans are built for continuous operation, low noise, and high efficiency.
Technical Performance Range
| Parameter | Boiler ID / FD Fan Specification |
|---|---|
| Fan Type | Boiler Induced Draft Fans (ID Fans) / Forced Draft Fans (FD Fans) |
| Application | Steam boilers, thermal power plants, biomass boilers, furnaces, combustion systems and industrial heating systems |
| Airflow Range | 5,000 – 500,000 m³/h, custom engineered according to boiler capacity |
| Pressure Range | 500 – 15,000 Pa for combustion air supply and flue gas exhaust |
| Operating Temperature | Up to 850°C high temperature resistant design available |
| Motor Power | 7.5 – 1000 kW, selected according to system resistance and duty point |

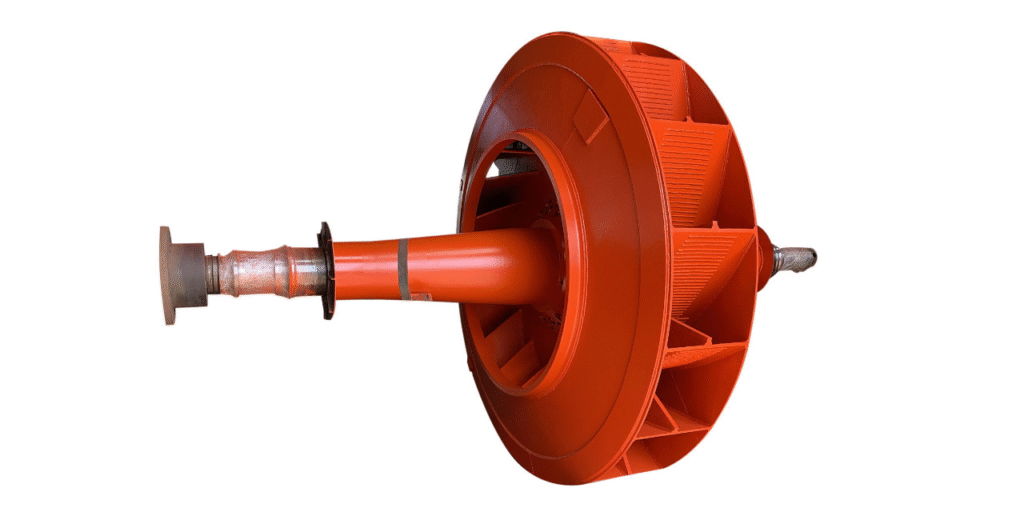

| Impeller Design | Backward curved, radial or wear-resistant heavy-duty impeller |
| Construction Material | Carbon steel, SS304, SS316, AISI 310S and custom high-temperature materials |
| Drive Type | Direct drive, coupling drive or belt drive configuration |
| Bearing Brand | SKF / FAG / NSK heavy-duty bearing solutions available |
| Motor Brand | ABB / Siemens / WEG / Chinese premium motor options |
| Control System | VFD control, soft starter, PLC automation and remote monitoring available |
| Industrial Features | High efficiency, low vibration, stable airflow, continuous 24/7 operation |
| Optional Features | Explosion-proof motors, thermal insulation, silencers, vibration monitoring and custom base frame |
Typical Applications
Biomass Boiler Fan
Reliable industrial fan and blower solutions for chemical plants, process ventilation, exhaust gas handling, fume extraction, corrosion-resistant airflow and explosion-proof ventilation applications.
Dust Collection Systems
Reliable industrial fan and blower solutions for dust extraction systems, baghouse filters, cyclone separators and industrial air pollution control applications.
Boiler & Combustion Air Fans
Designed for demanding industrial airflow, combustion, conveying, and ventilation applications across multiple industries.
Industrial Boiler Fan Product Series
Why Choose us
We combine two decades of manufacturing excellence with advanced design and testing to deliver fan solutions trusted across industries nationwide and beyond.
Experience
Nearly 20 years of professional fan manufacturing ensures proven reliability and deep industry knowledge.
Advanced Design
Utilizes U.S. SAP fan system software and CAD tools for optimized performance and noise reduction.
Industry Focused
Over 3,000 fan models tailored for power, mining, tunnels, metallurgy, petrochemicals, and more.
Transparent
We maintain honest partnerships with clients and uphold integrity in every transaction.
Precision Engineering
Equipped with CNC bending, shearing, and laser cutting machines for high-accuracy production.
Reputable
Trusted by major domestic clients and international partners for consistent quality and performance.
Sustainable Manufacturing
Design and process choices emphasize energy efficiency and durability.
Quality Assurance
Complete fan testing setups ensure every unit meets rigorous performance standards.
University Collaboration
Cooperates with Shanghai Jiao Tong, Xi’an Jiao Tong, and Zhejiang University for continuous R&D.
Production Equipment
Advanced production equipment ensures precision, consistency, and quality—every step, from CNC machining to dynamic balancing, is tightly controlled to meet global standards.
Frequently Asked Questions
Find answers about boiler ID fans, FD fans, industrial centrifugal fans, high-temperature applications and custom engineering solutions.
What is the difference between ID fan and FD fan?
FD fans (Forced Draft Fans) supply combustion air into the boiler system, while ID fans (Induced Draft Fans) extract high-temperature flue gas and maintain negative furnace pressure for stable boiler operation.
What temperature can boiler ID fans handle?
Our industrial boiler ID fans can be designed for high-temperature operation up to 850°C using heat-resistant materials such as SS304, SS316 and AISI 310S stainless steel.
Can boiler fans be supplied with VFD control?
Yes. Variable Frequency Drive (VFD) control is available for airflow adjustment, energy saving and stable boiler combustion control.
What materials are used for boiler centrifugal fans?
Boiler centrifugal fans are commonly manufactured using carbon steel, SS304, SS316 or high-temperature resistant AISI 310S materials according to operating conditions.
Do you provide custom industrial boiler fan solutions?
Yes. We provide custom airflow, pressure, temperature and structural designs according to boiler capacity, fuel type and industrial operating conditions.
