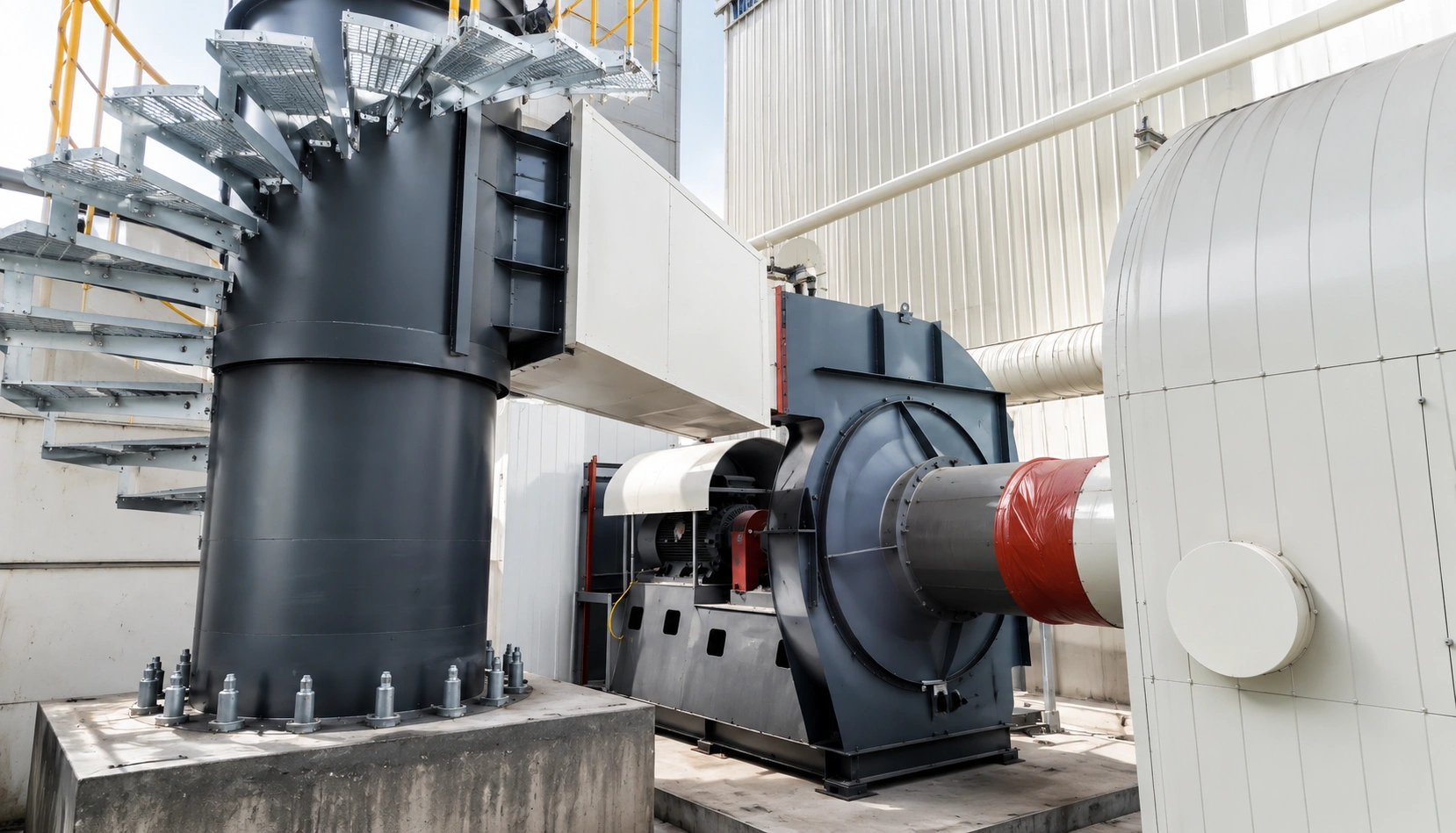

Boiler Forced Draft Fan for Combustion Air Systems: Selection Guide
A boiler forced draft fan supplies combustion air to an industrial boiler. It is usually installed before the furnace or air preheater and works together with the induced draft fan to maintain stable combustion and proper furnace draft.
This product direction is important for Zhichengfans because boiler FD fans are a clear heavy-duty industrial application. Buyers usually need fan performance, motor power, drive arrangement, inlet/outlet direction, and reliable long-term operation.
Typical Applications
- Biomass boiler combustion air supply
- Coal-fired industrial boiler systems
- Gas boiler combustion air systems
- Steam boiler forced draft systems
- Primary air and secondary air systems
- Industrial furnace combustion air supply
Selection Parameters
- Required airflow
- Total pressure or static pressure
- Fuel type and boiler capacity
- Air temperature and air density
- Air preheater resistance if applicable
- Control method such as damper, VFD, or PLC control
- Motor voltage, frequency, protection grade, and power
- Fan rotation, inlet direction, outlet direction, and foundation layout
FD Fan vs ID Fan
| Item | FD Fan | ID Fan |
|---|---|---|
| Main function | Supply combustion air | Extract flue gas |
| Gas condition | Clean or preheated air | Hot flue gas, dust, possible corrosion |
| Design focus | Airflow stability and control | Temperature, wear resistance, draft control |
Control Requirements
Boiler combustion air demand changes with boiler load. The FD fan can be controlled by damper, VFD, or the boiler control system. The selected fan should provide stable airflow across the required operating range without excessive noise, vibration, or power waste.
Related Reading
- Boiler ID Fan vs FD Fan: Key Differences
- Boiler ID Fan and FD Fan for Biomass and Industrial Boilers
- Biomass Boiler Induced Draft Fan for Dusty Flue Gas
FAQ
Is an FD fan the same as an ID fan?
No. An FD fan supplies combustion air, while an ID fan extracts flue gas and maintains furnace draft.
Can the FD fan be controlled by VFD?
Yes. VFD control is often used when boiler load changes and the system needs variable combustion air volume.
What information is needed for selection?
Please send airflow, pressure, fuel type, boiler capacity, air temperature, motor voltage, frequency, and installation layout.
